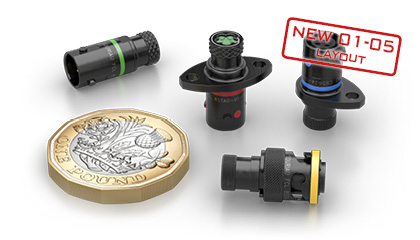

Size 01 Miniature Connectors

Size 01 Miniature Connectors

For motorsport applications where space is limited, this is the smallest available connector with removable contacts (20% smaller than size 02) available with 3 or 5 pins. Built from aluminium alloy plated black zinc or nickel, the 8STA Size 01 is a perfect solution for size & weight reduction in extreme vibration environments.

Product Description

  • The world’s smallest and lightest Autosport connector - 20% smaller than size 02
  • Perfect solution for size & weight reduction in extreme vibration environments
  • 3 or 5 contacts #26 for AWG 24 to 30
  • New 01-05 layout - one of the smallest 5-way motorsport connectors available worldwide
  • 7 colour coded keyway orientations
  • Weight saving half flange / single hole fixing versions available (see datasheet below)
  • Boot termination feature
  • PCB option available
  • Well proven design according to 8STA standard
  • Dedicated assembly tooling
  • Ultra-lightweight accessories such as protective caps, nut plates, gaskets and miniature heat shrink boot

Related Products

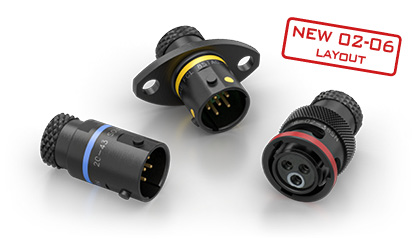

Size 02 Standard Connectors

Souriau 8STA 02-06 6-way motorsport / autosport circular connectors

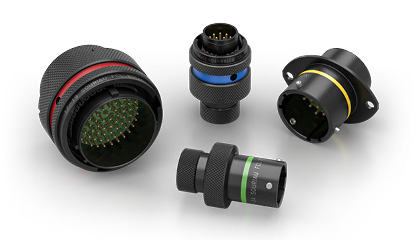

Size 08 – 24 Connectors

Souriau 8STA, size 08 to 24, ip67 motorsport/autosport circular connectors, compatible with Deutsch AS autosport

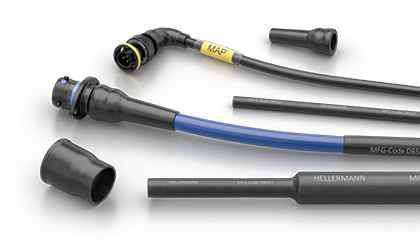

Heat Shrink Tubing / Moulded Shapes
