High Density Connectors

High Density Connectors

Designed by Souriau as a compact solution for motorsport engine control units, data acquisition systems and cable harnesses, the 8STA high density connector comes in 7 shell sizes and features size 26 contacts for 24 to 30 AWG cable.

Product Description

  • Derived from MIL-DTL-38999 & JN1003 standard
  • Very reliable in even the harshest environments
  • Space and weight saving
  • Available in 7 shell sizes: 02-05; 04-06; 06-09; 08-12; 10-26; 12-43; 14-68
  • Size 26 contacts for wires sizes 24 to 30 AWG
As an approved assembling distributor for Souriau, our VAD team can put together many plan forms including 0812, 1026, 1243 and 1468 with insert arrangements with both crimp and PCB tail connectors. We can also help customers who need special shell requirements. This assembly service is ideal for customers who need prototypes, small volumes or urgent connector requirements.

Related Products

Size 08 – 24 Connectors

Souriau 8STA, size 08 to 24, ip67 motorsport/autosport circular connectors, compatible with Deutsch AS autosport

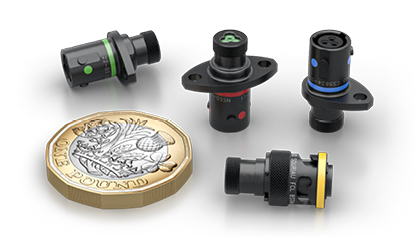

Size 01 Miniature Connectors
