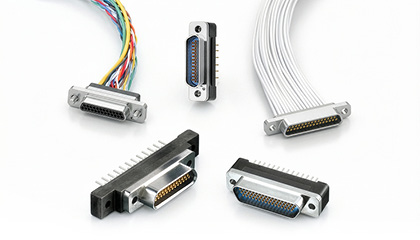

Axon Rectangular Micro-D Connectors are offered in MIL-DTL-83513 QPL and commercial versions with 1.27mm pitch and metal or plastic shells. Featuring proven twist pin contacts for high shock and vibration resistance, they deliver a lightweight alternative to standard D-Sub connectors without compromising performance.
Product Description
Available in standard and low-profile designs, with cable or PCB mount options in straight and right-angle configurations
Contact arrangements: 9, 15, 21, 25, 31, 37, 51 way (plastic and metal, standard & low profile); 69, 100 and 120 way (standard metal series)
Gold-plated copper alloy contacts
Housing materials: LCP plastic, plated aluminium, or stainless steel
Rated current: up to 3A
Maximum contact resistance: 8mΩ
Minimum durability: 500 mating cycles
Operating temperature: -55°C to +150°C (standard), up to +200°C (high-temperature version)
Encapsulated insulators with environmental sealing
