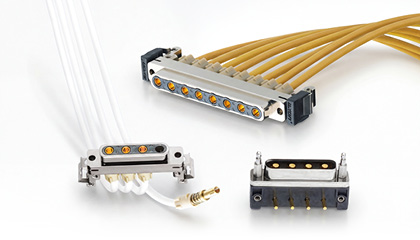

Axon Versatys™ Power Miniature Connectors are up to 40% smaller and lighter than traditional Combo-D connectors, while maintaining full performance. Using fast-locking Micro-D technology, they provide rapid, secure connection in a compact, high-performance design.
Product Description
Up to 40% smaller and lighter than standard D-Sub connectors
Tool-free design for fast and easy integration
Based on proven Micro-D connector technology (MIL-DTL-83513)
Available in cable and PCB mount styles, with straight or 90° configurations
4- and 8-way single-row contact arrangements available
Copper alloy, gold-plated contacts (RF coax options also available)
Plated aluminium shells for enhanced durability
Power contacts rated up to 40A
Maximum contact resistance of 2.5 mΩ
Minimum of 500 mating cycles
Operating temperature range: Standard: -55°C to +150°C, High-temperature: -55°C to +200°C
Encapsulated insulators with environmental sealing
Available in dismountable or fully potted versions
Axon Versatys D Click Miniature Connectors Catalogue
